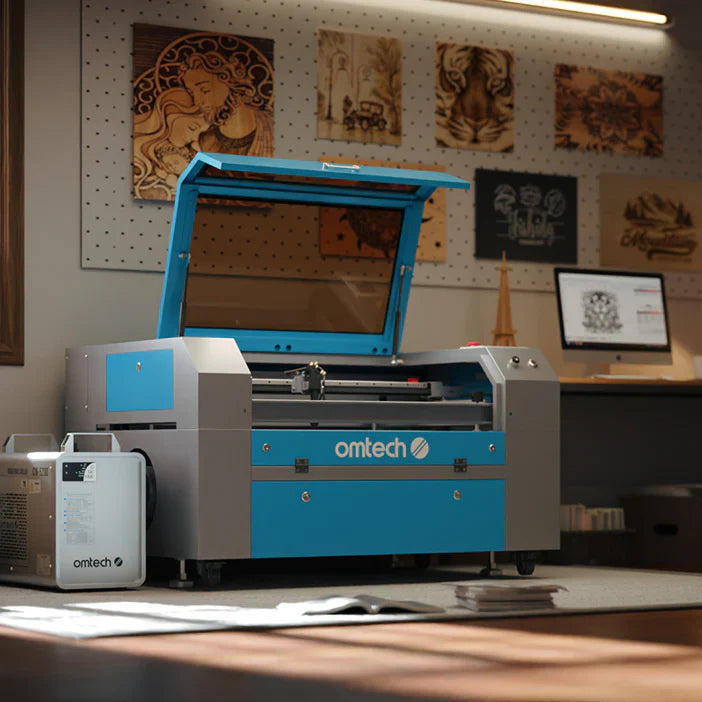

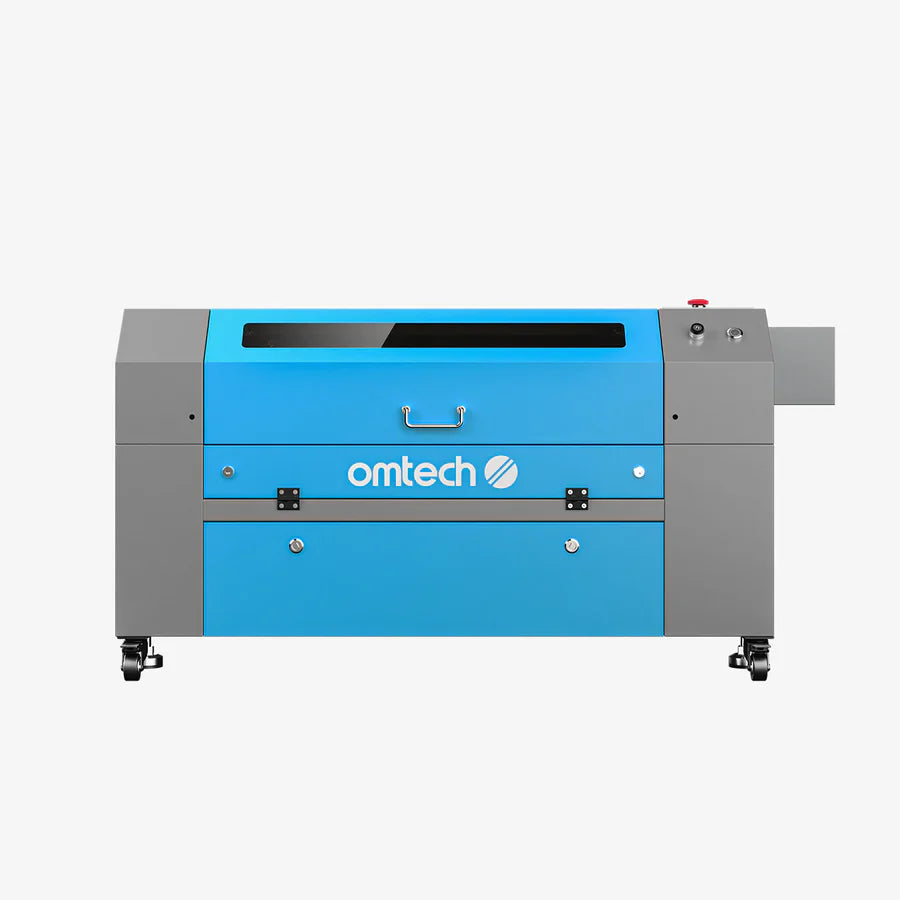

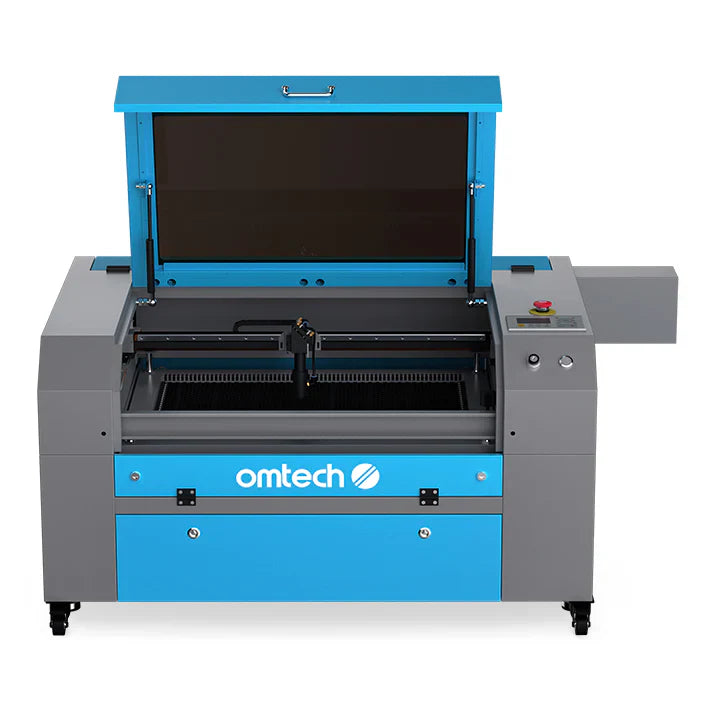

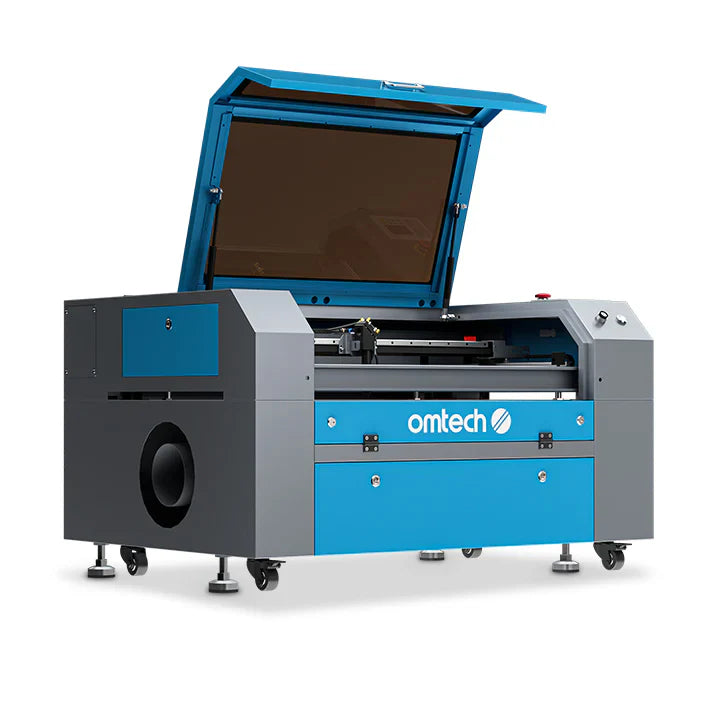

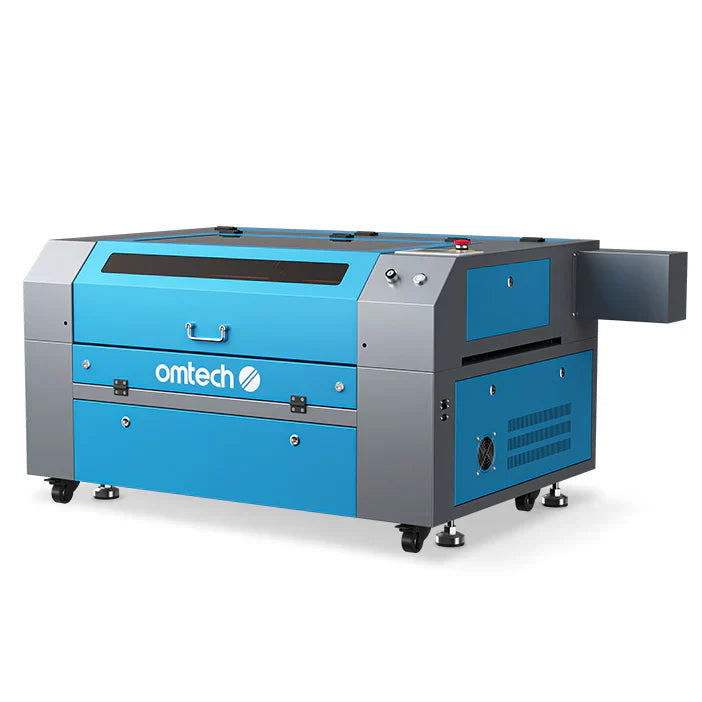

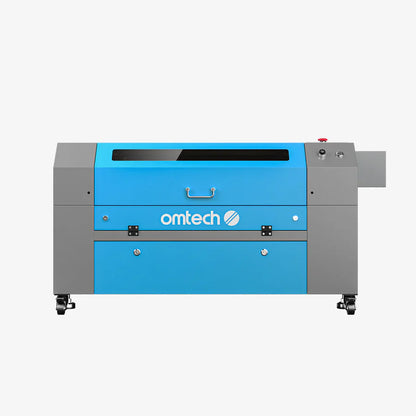

OMTech Maker MF2028-80 90W CO2 Laser Engraving and Cutting Machine with 20" x 28" Working Area

OMTech Laser, Always Your First Choice

Unlock boundless creativity with the OMTech MF2028-80, your ultimate everyday companion! Featuring a robust 90W laser output and an expansive work area, this powerhouse empowers you to effortlessly tackle diverse projects, transforming your space into a personal manufacturing hub.

OMTech 90W Laser Engraver

Your Perfect Engraving Business Co-Pilot

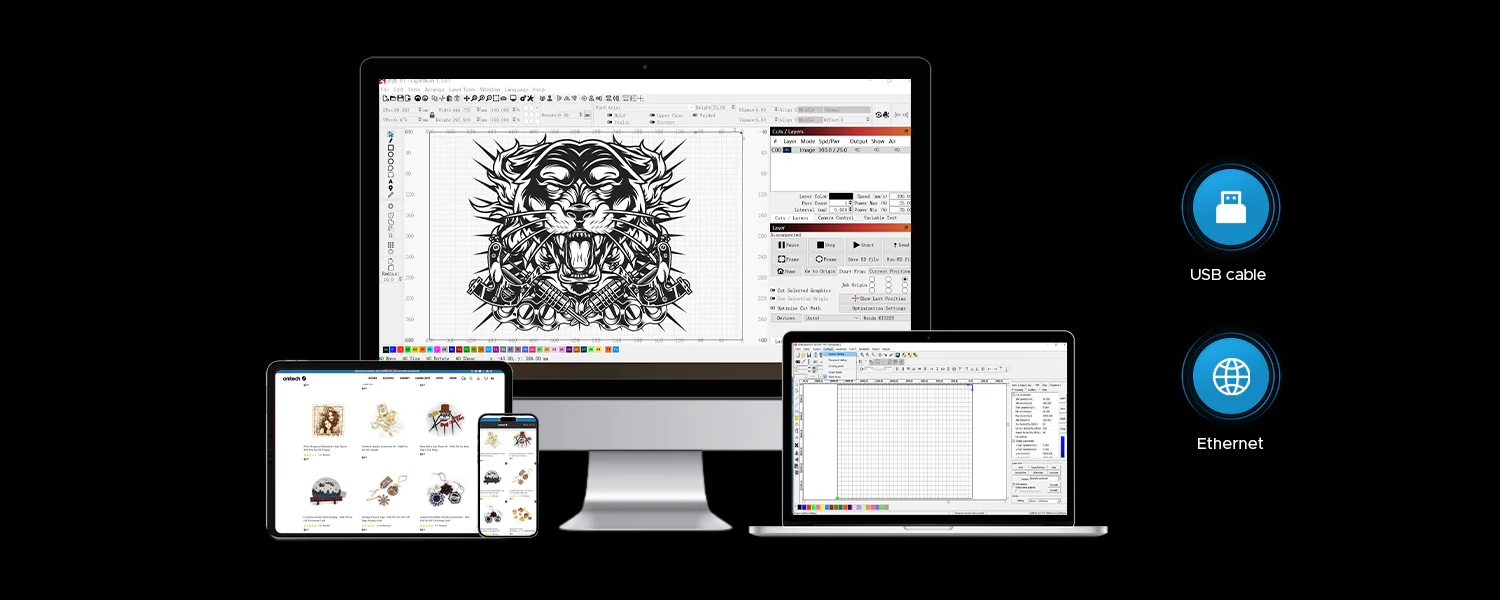

Versatile Connectivity

Upload your designs directly to the machine through Ethernet or USB ports. Experience a seamless workflow whether you're using a PC, iPad, or mobile device.

Boost Your Productivity

With a speed of up to 600 mm/s, this cutting-edge engraving tool not only enhances work efficiency but also ensures impeccable engraving accuracy for streamlined, high-volume production.

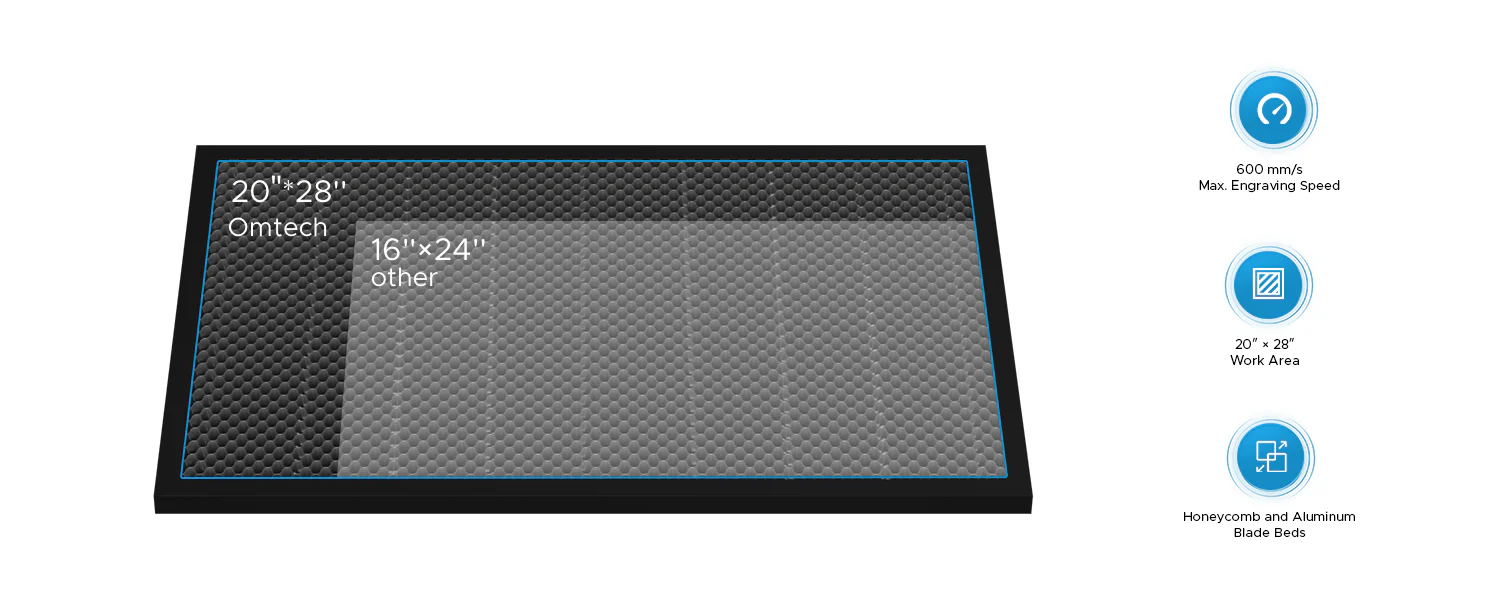

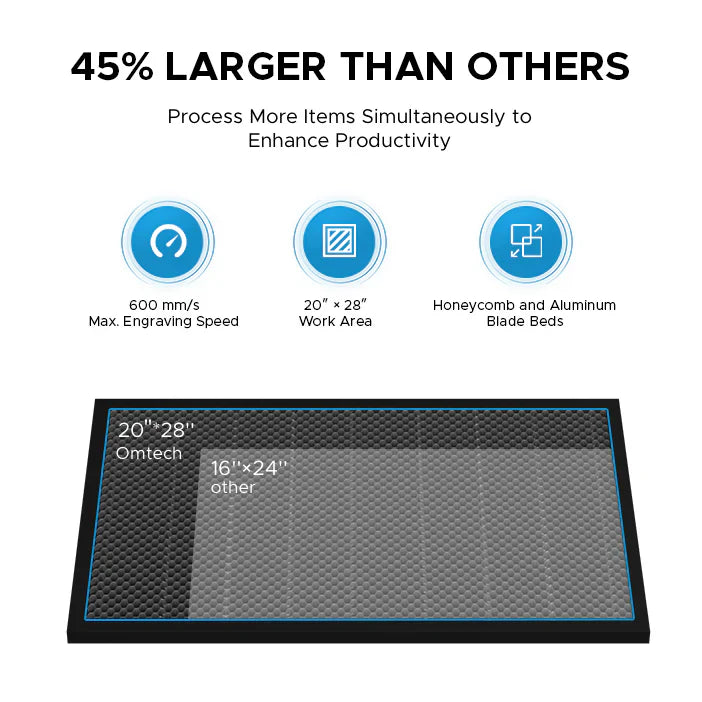

Dual Work Platforms

Our laser engraver is equipped with 20"x28" honeycomb and aluminum blade workbeds to let you handle large items and projects with ease.

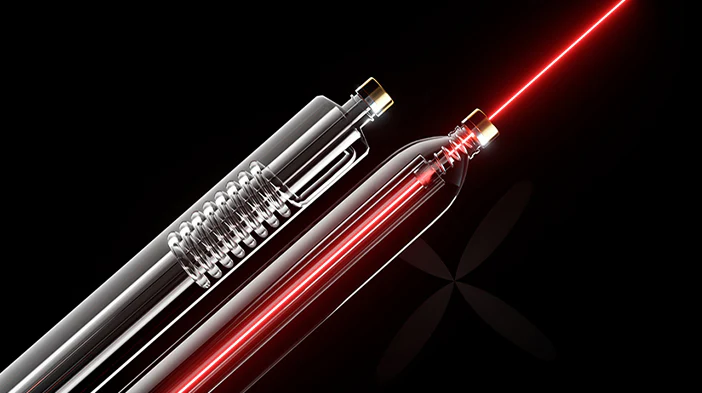

Powerful & Efficient Tube

Our Yongli H2 CO2 laser tube delivers 90W of power for up to 8,000 hours of usage, with its lifespan extended when consistently used at lower settings.

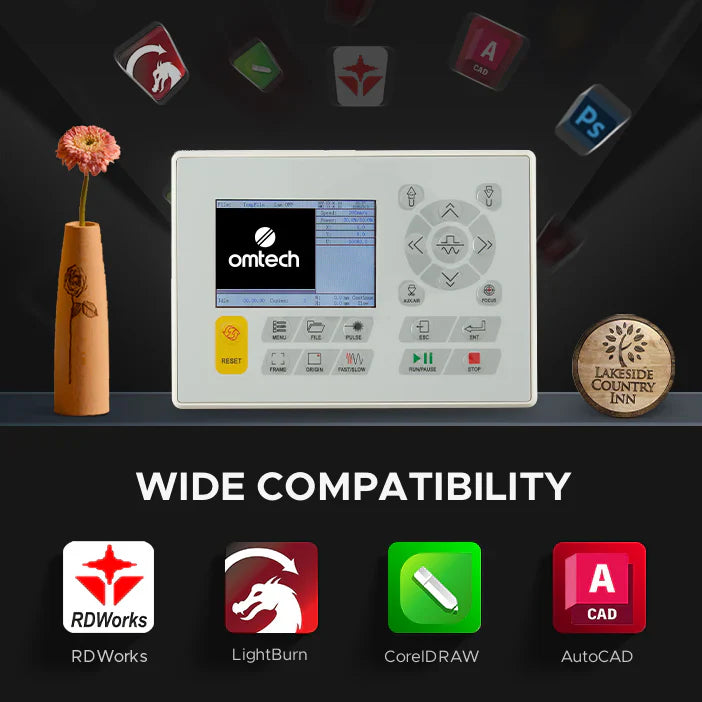

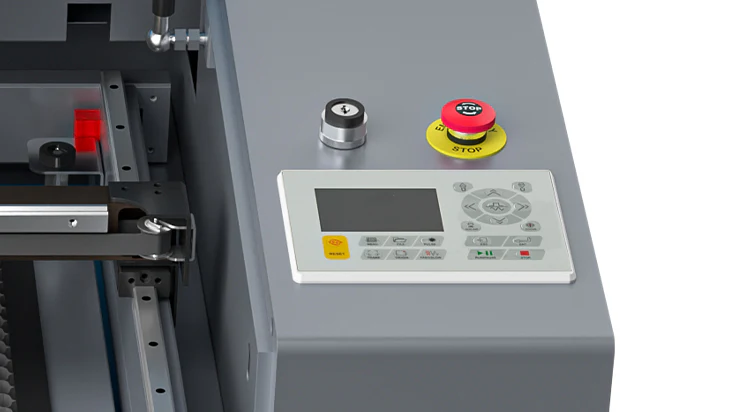

Digital Control Panel

The intuitive Ruida control panel offers complete control over the laser head, allowing you to pause or halt projects, modify laser power and speed settings, view files, and frame projects with ease.

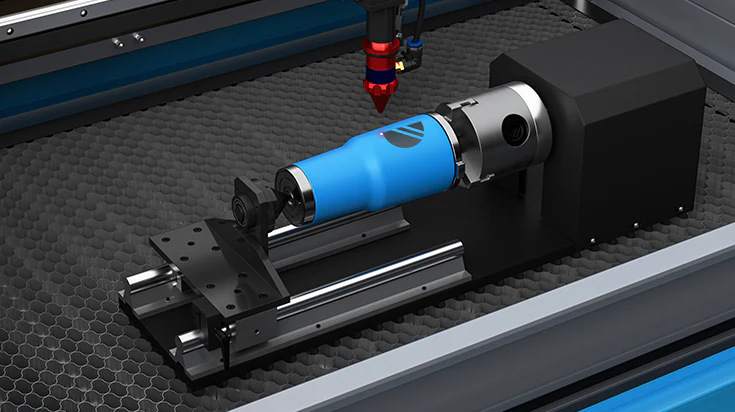

Rotary Axis Compatible

Compatible with any rotary axis on the market, this laser machine effortlessly performs 360° engravings on cylindrical and round objects such as cups, bottles, flasks, tubes, pipes, bowls, bracelets, and more!

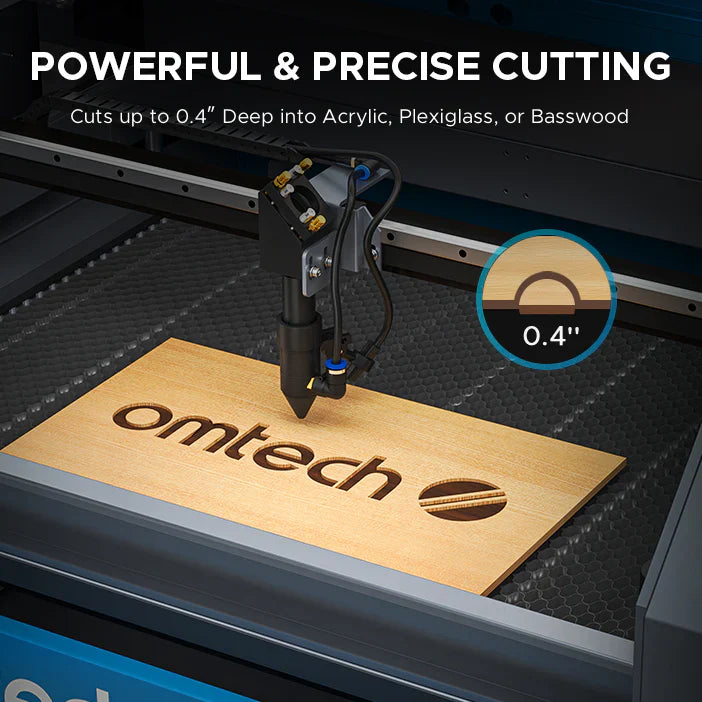

Powerful & Precise Cutting

This laser engraving machine cuts up to 0.4 inches deep on a variety of materials thanks to its powerful 90W laser tube.

Let Your Imagination Run Wild

Break free from material constraints and experience unparalleled versatility in your laser engraving projects.

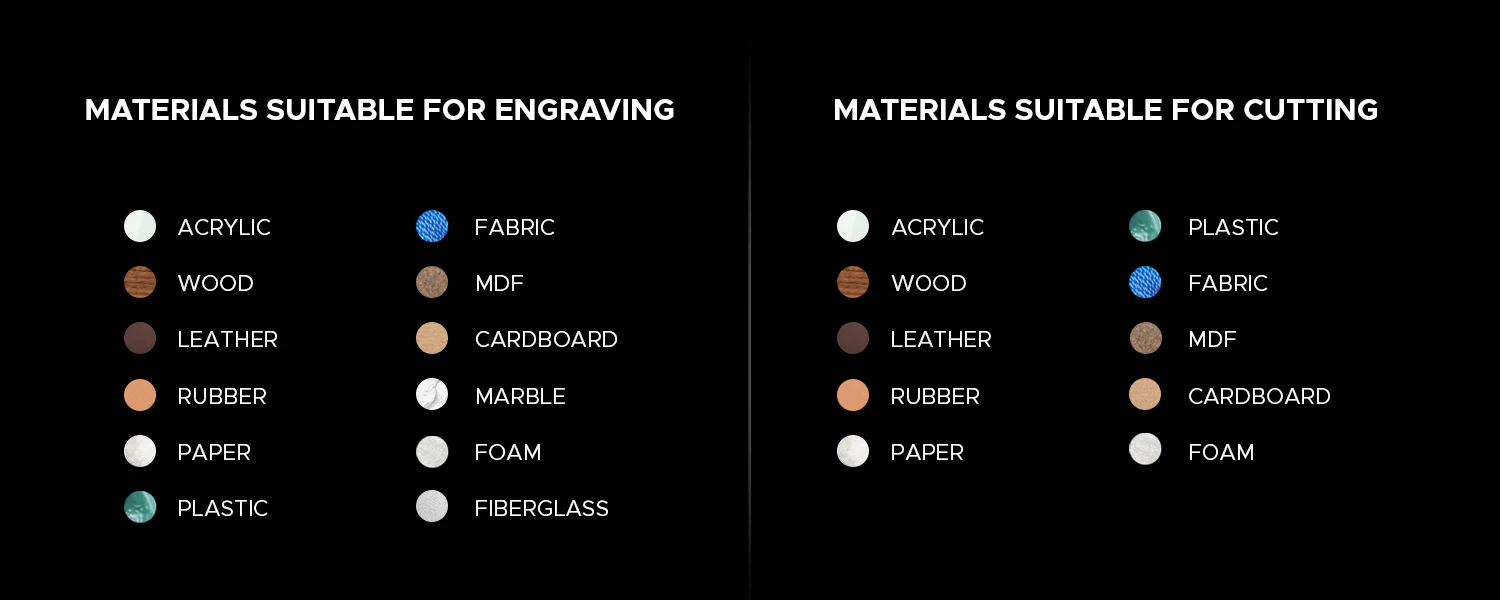

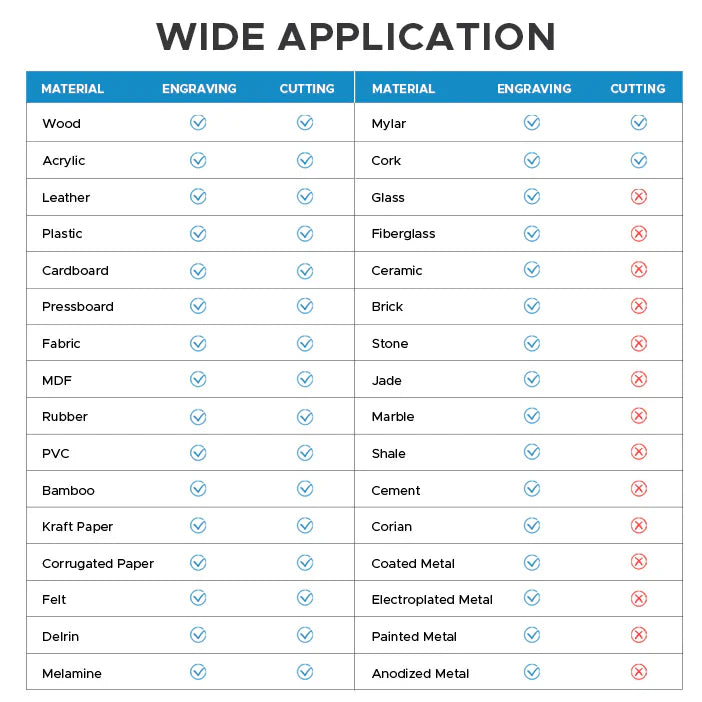

You Can Engrave And Cut With These Materials

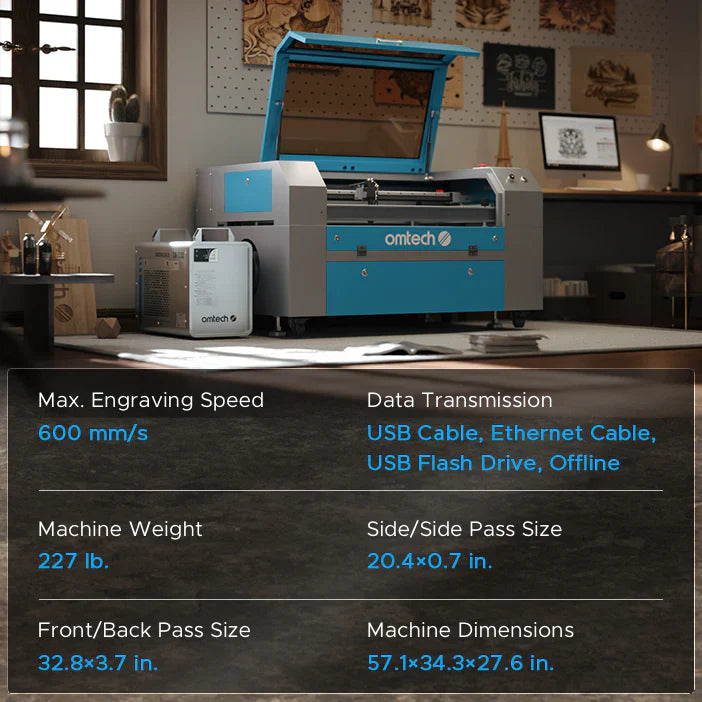

Specifications & Package List

Product Information

Color: Blue, Gray

Dimensions(L*W*H): 57.1 x 34.3 x 27.6 in. (145x87x70 cm)

Engraving Area: 20 x 28 in (500x700 mm)

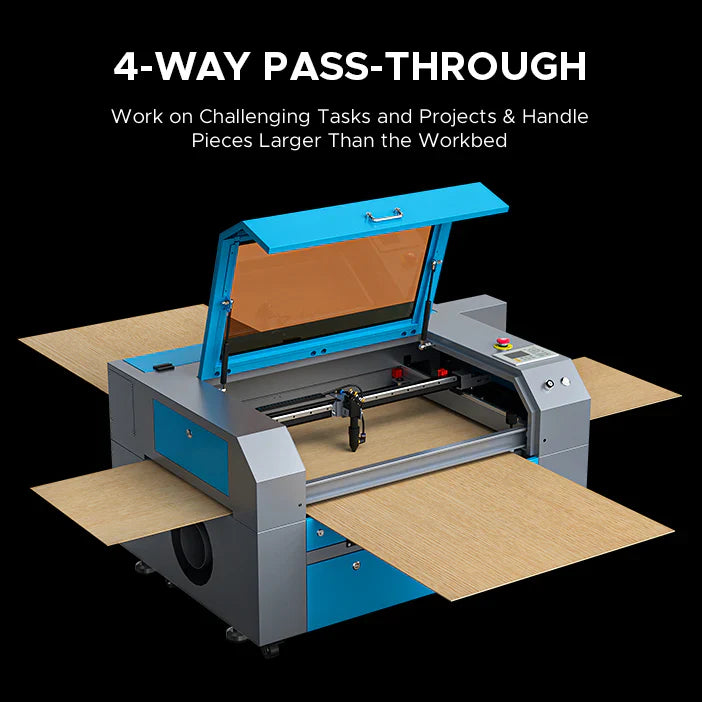

Front & Back Pass-Through Size: 32.8 x 3.7 in. (835x95 mm)

Side to Side Pass-Through Size: 20.5 x 0.8 in. (520x20 mm)

Rated Power: 90W

Est. Service Life: 12,000 hr.

Max. Engraving Speed: 23.6 ips (600 mm/s)

Max. Engraving Depth: 0.4 in. (10 mm)

Laser Tube Length: 49.2 in. (1250 mm)

Laser Tube Diameter: 2.4 in. (60 mm)

Compatible Operating Systems: Windows 2000, XP, Vista, 7, 8, 10

Bundled Software: RDWorks

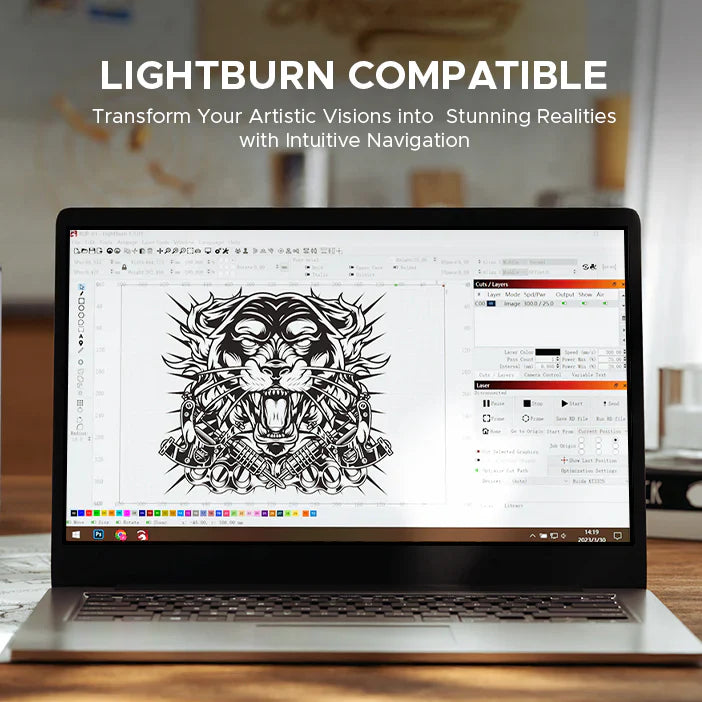

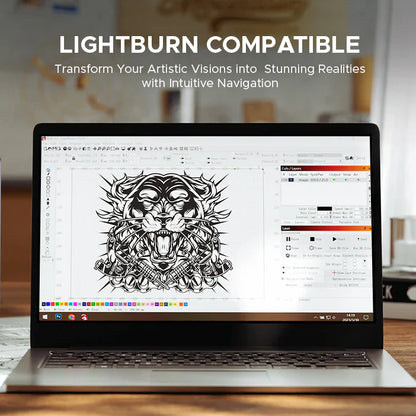

Compatible Software (not incl.): LightBurn, CorelDRAW, AutoCAD

Supported Image Formats: .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga

Data Transmission: USB Cable, Ethernet Cable, USB Flash Drive, Offline

Certification: CE, FDA

Net Weight: 227.1 lb. (103 kg)

Warranty: 2 Years (1 Year for Parts)

Package List

1x 90W CO2 Laser Engraver

1x Power Cord

1x USB Flash Drive

1x USB Cable

1x Ethernet Cable

1x Double-Sided Tape

1x Wrench Set

1x Tube of Silicone Insulation

1x Ceramic Resistor

1x Exhaust Pipe

1x Pipe Clamp

1x Water Pump

2x Water Pipes

1x Wire Set

6x Keys

1x User Manual

1x Water Tank

2x Focusing Rulers
