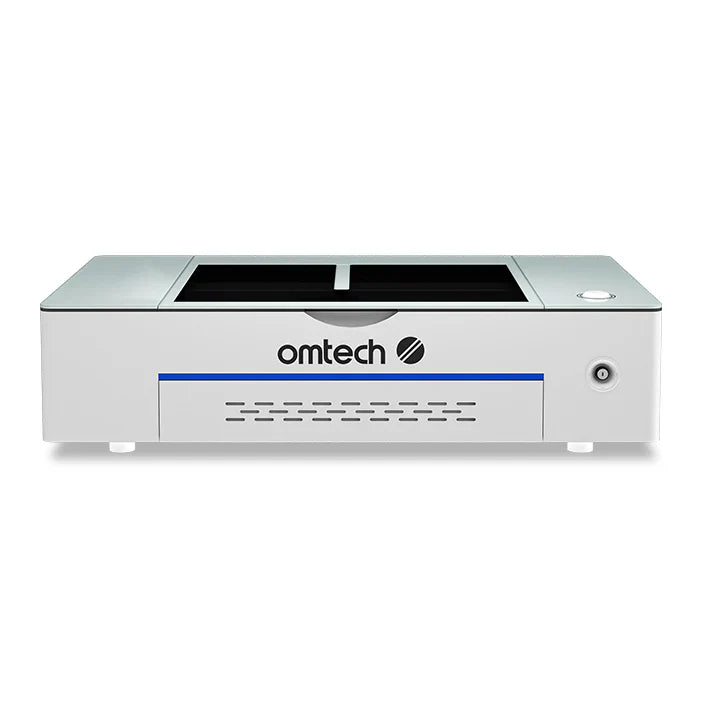

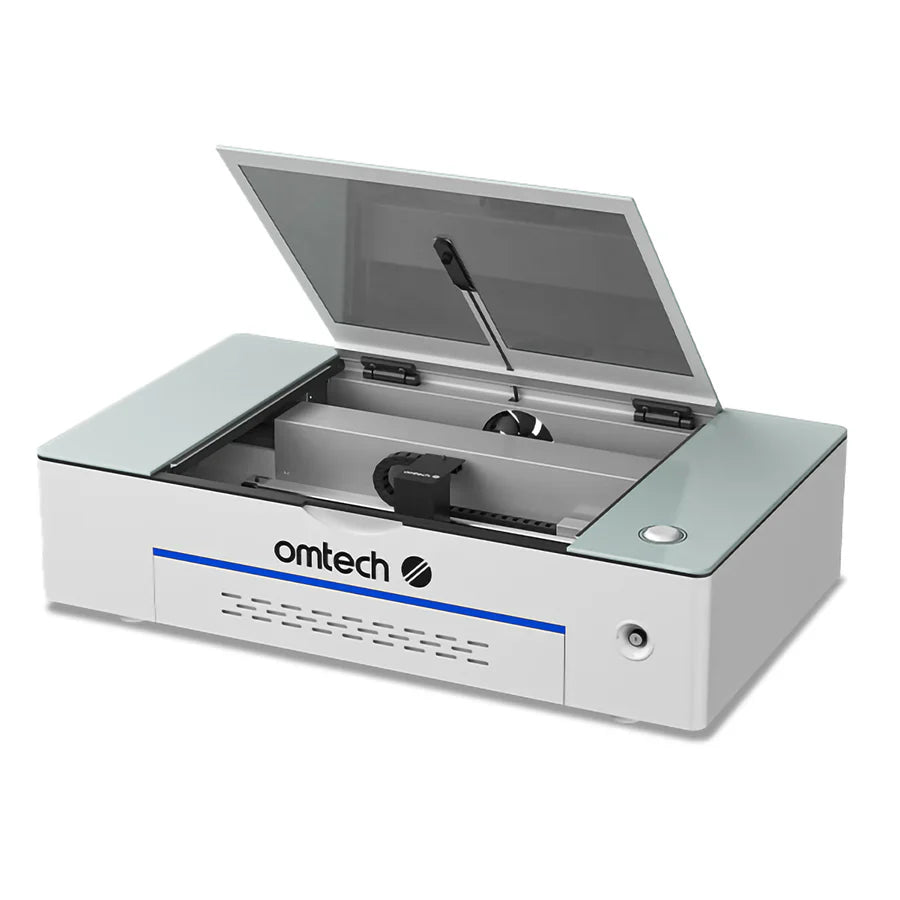

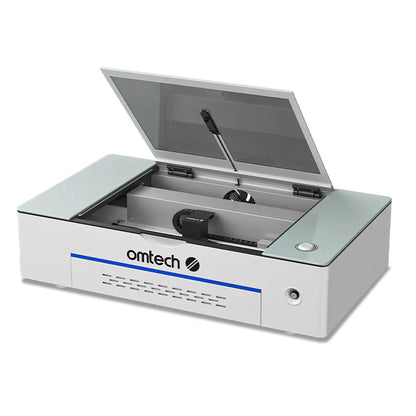

OMTech Polar 50W Desktop CO2 Laser Engraver and Cutter with Two Rotary Axes

OMTech 50W Laser Engraver

Your Perfect Engraving Business Co-Pilot

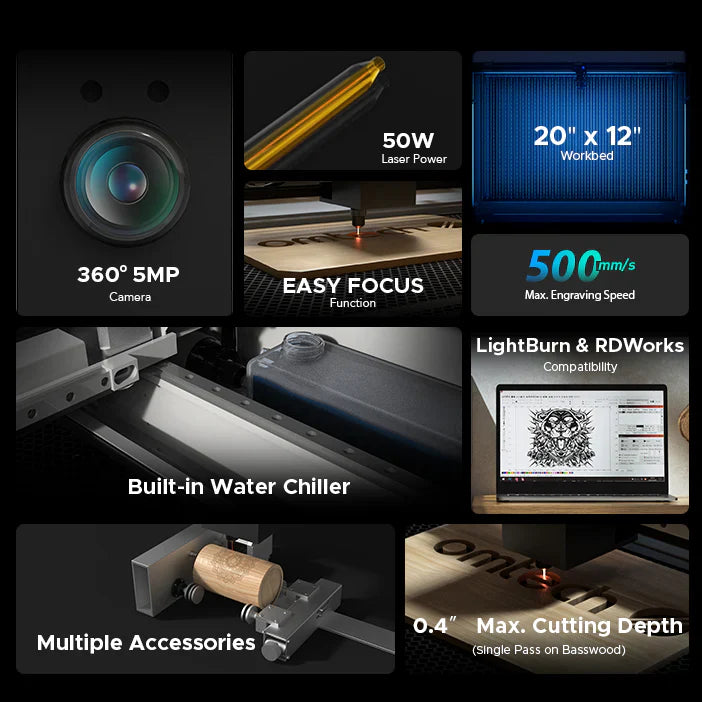

OMTech Polar Smarter Than Ever

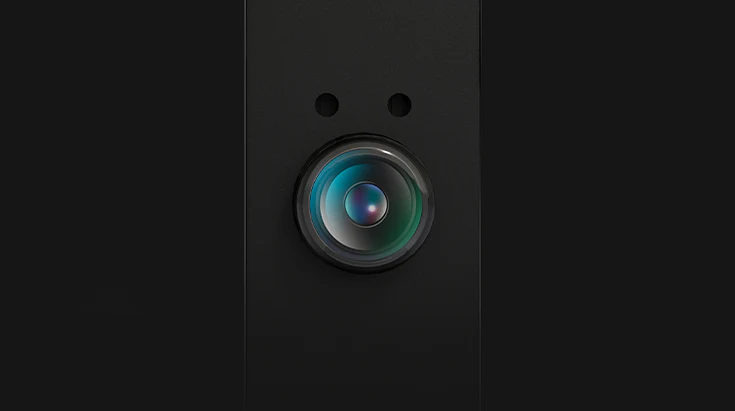

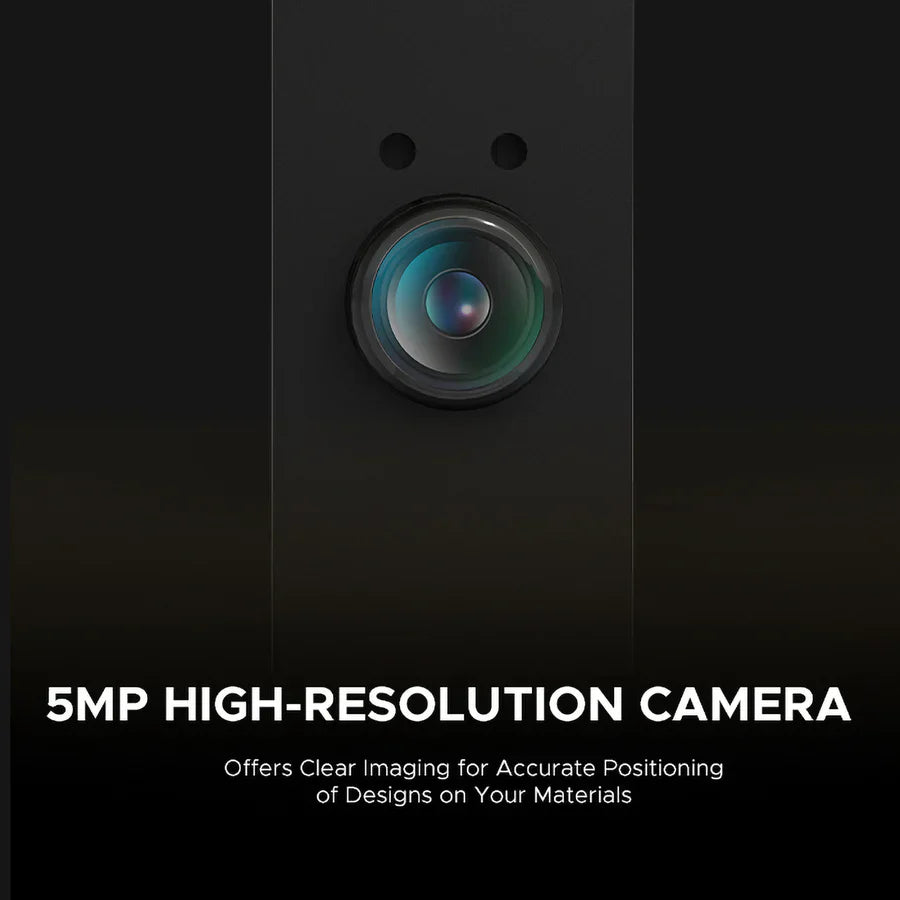

The panoramic camera offers a high-resolution visual of your work in real time and allows you to drag and drop the view to adjust the size and position of your pattern.

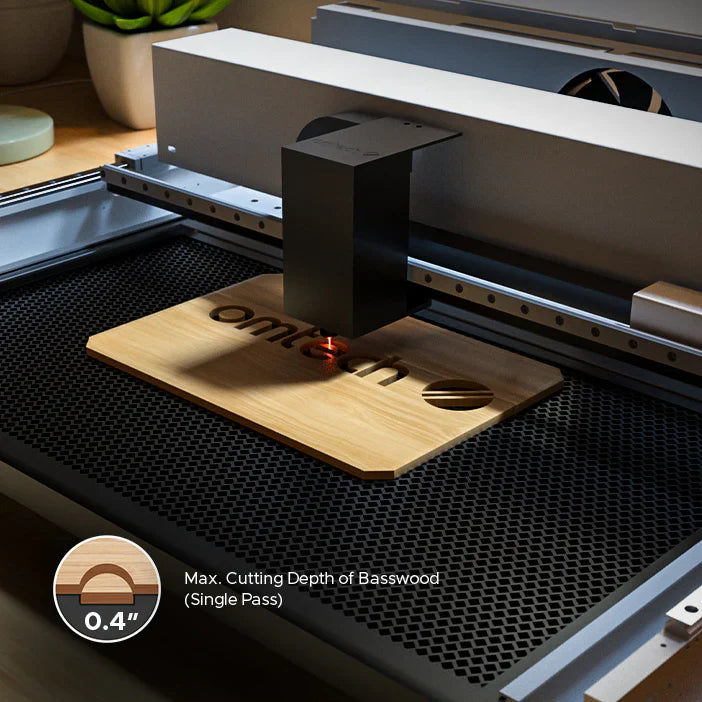

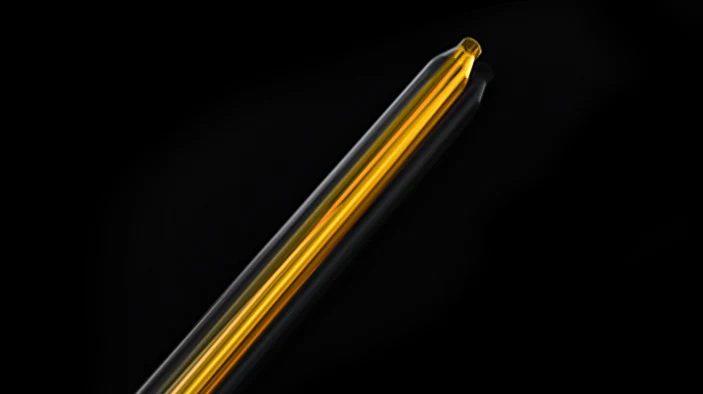

Our Yongli T10 CO2 laser tube offers a powerful laser beam, ensuring high efficiency for engraving or cutting through a diverse range of materials.

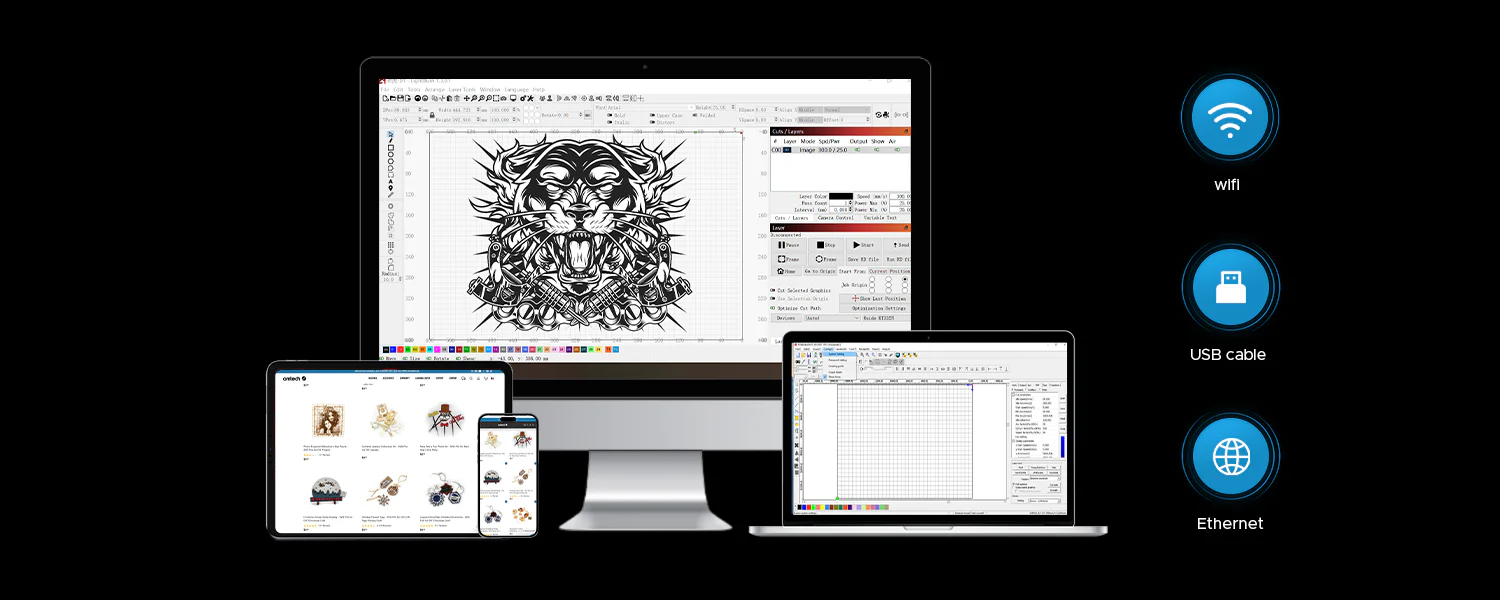

Versatile Connectivity

Upload your designs directly to the machine through Wi-Fi or Ethernet & USB ports. Experience a seamless workflow whether you're using a PC, iPad, or mobile device.

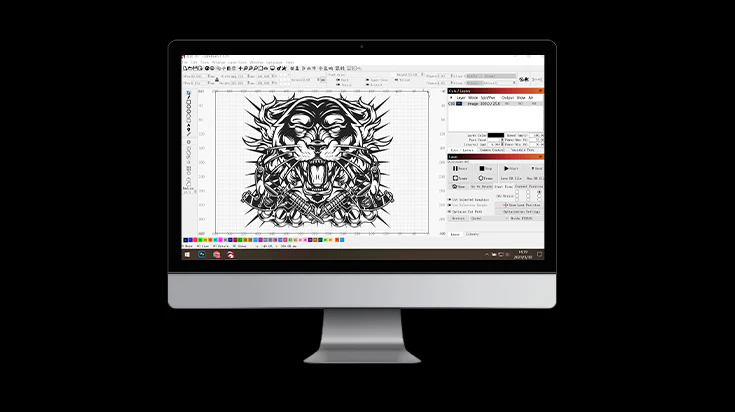

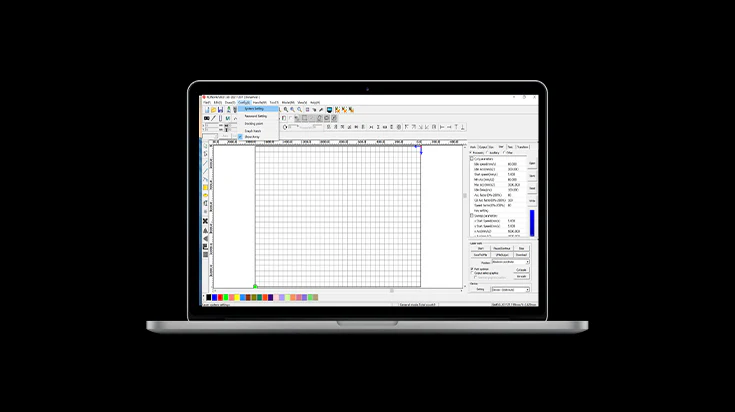

Multiple Software Compatible

This machine supports the use of RDWorks, LightBurn, CorelDRAW, and Photoshop, accommodating various user preferences and ultimately simplifying your engraving process.

Skyrocket Your Business Success with OMTech

Let Your Imagination Run Wild

Break free from material constraints and experience unparalleled versatility in your laser engraving projects.

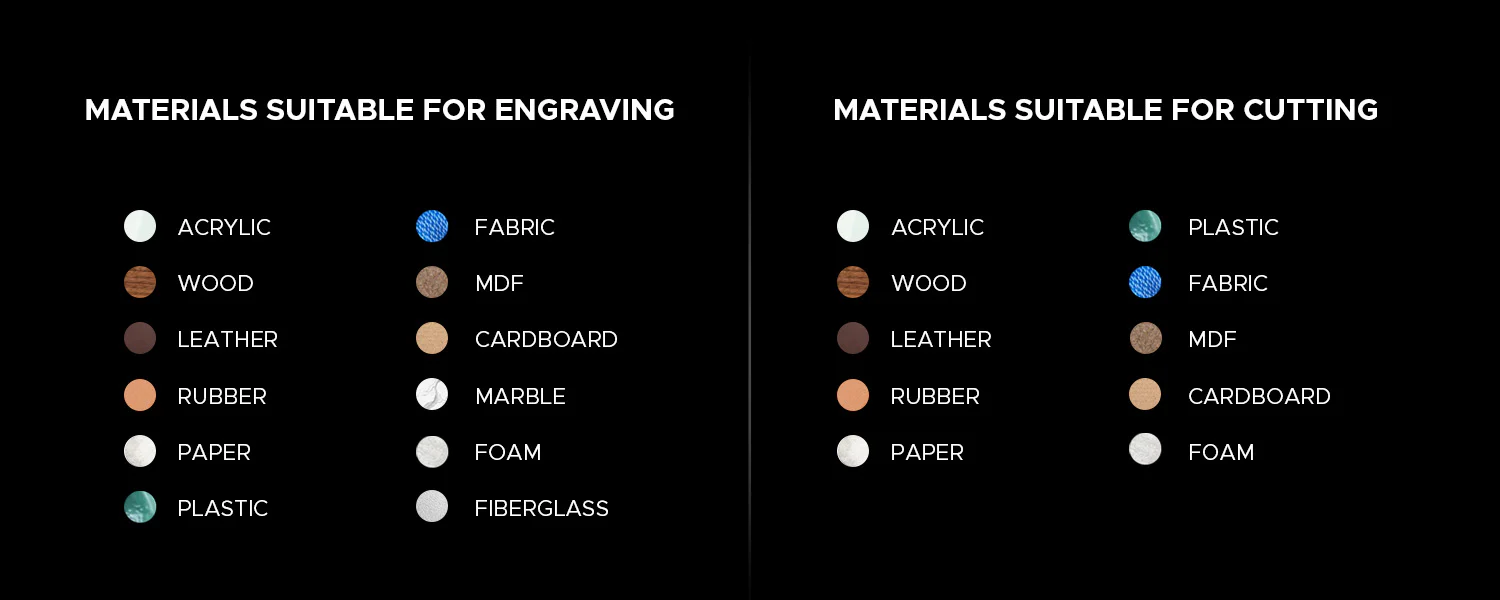

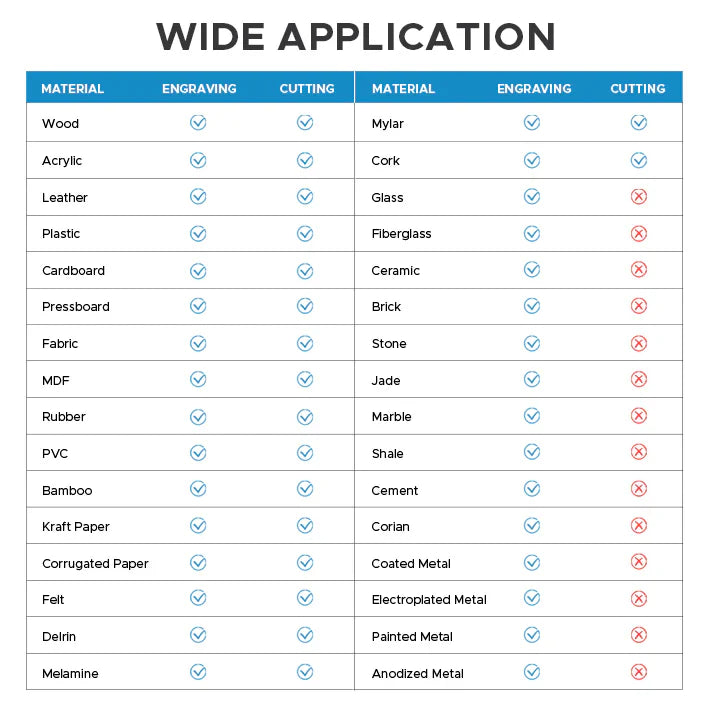

You Can Engrave And Cut With These Materials

Specifications & Package List

Product Information

Rated Power: 50W

Dimensions: 38.2 x 22.3 x 9.2 in. (97x56.5x23.4 cm)

Honeycomb Workbed Dimensions: 22.5 x 13.2 x 0.9 in. (57.1x33.6x2.2 cm)

Standard Processing Area: 20.1 x 11.8 in. (510x300 mm)

Trayless Processing Area: 13.7 x 8.2 in. (350x210 mm)

Rotary 1 Processing Area: 0-9.4 x 2.4-2.9 in. (0-240x60-75mm)

Rotary 2 Processing Area: 0-9.4 x 1.2-2.3 in. (0-240x30-60mm)

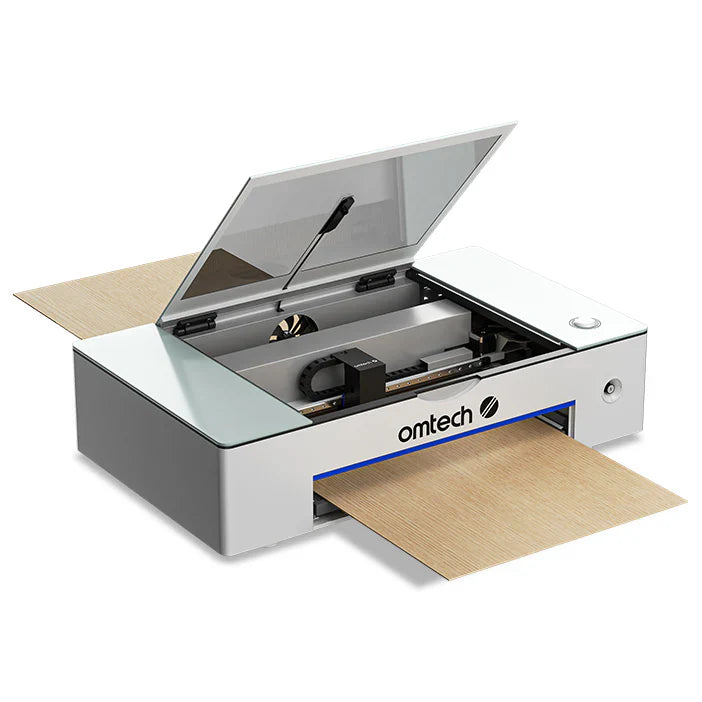

Front & Rear Pass-Through Area: 14.1 x 0.19 in. (360x5 mm)

Max. Material Thickness: 0.59 in. (1.5 cm), 1.9 in. (5 cm) (without bed)

Est. Laser Service Life: 11000 hr.

Max. Processing Speed: 19.7 ips (500 mm/s)

Max. Resolution: 1000 dpi

Mini. Letter Size: 0.04 x 0.04 in. (1x1 mm)

Water Chiller Capacity: 1.6 qt. (1.5 L)

Flow Rate: 142 gph (540 L/h)

Camera Resolution: 5MP

Field of View: 20.1 x 11.8 in. (51x30 cm)

Accuracy: ±0.04 in. (±1 mm)

Air Assist Port Diameter: 0.4 in. (10 mm)

Air Flow: 18.8 cfm (533 L/min.)

Exhaust Fan Port Diameter: 5.9 in. (150 mm)

Air Flow: 282/353 cfm (480/600 m³/h)

Data Transmission: Wifi, USB Cable, Ethernet Cable

Provided Operating Software: RDWorks

Compatible Operating Software: CorelLaser, CADLaser, LightBurn

Certification: CE, FDA

Net Weight: 104 lb. (47 kg)

Warranty: 2 Years (1 Year for Parts)

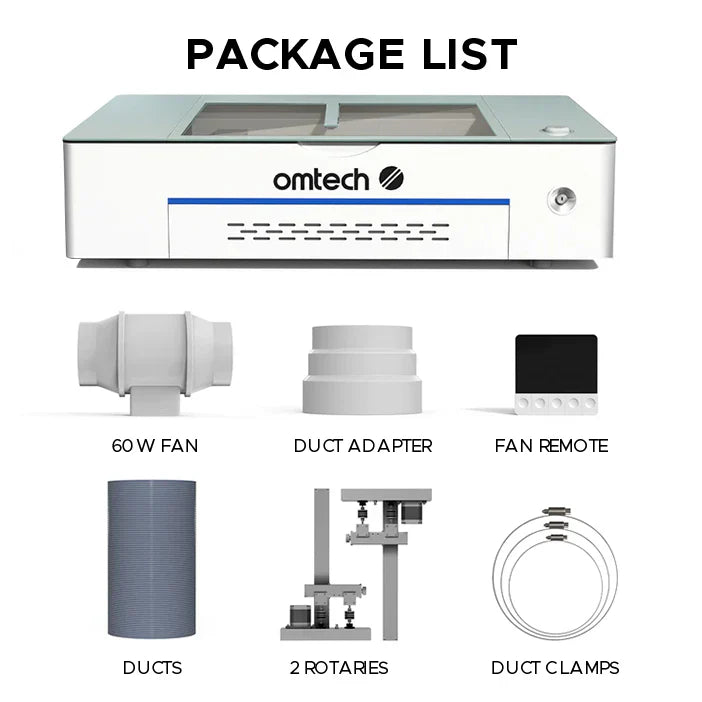

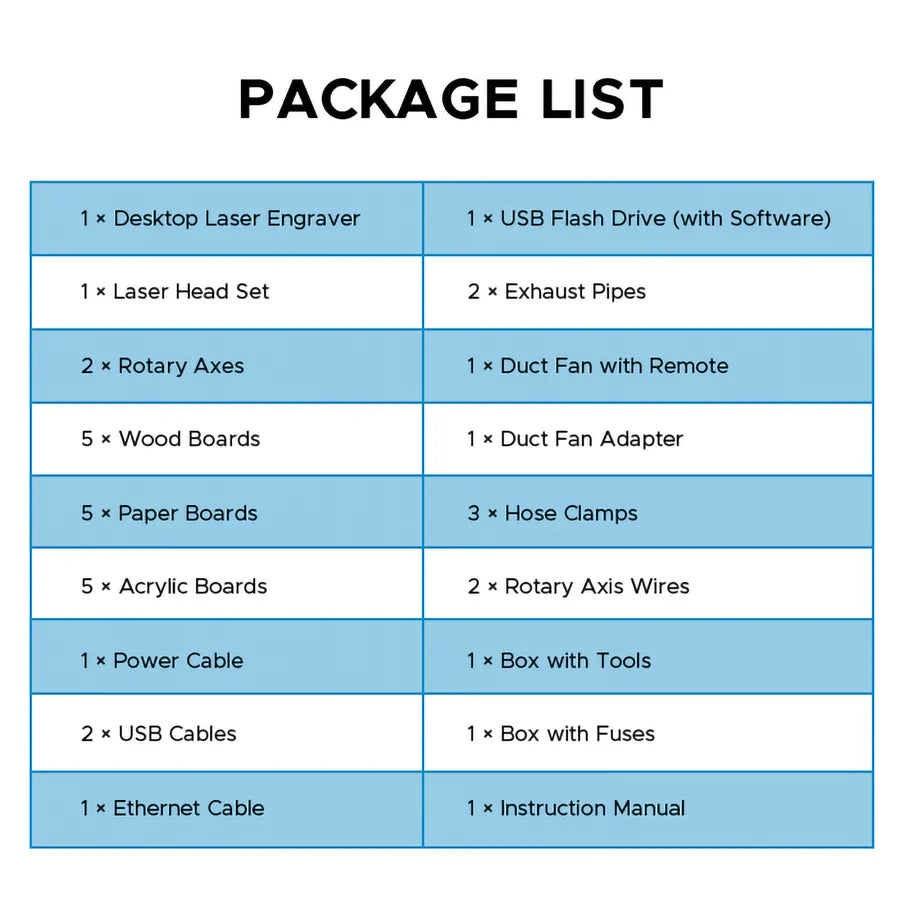

Package List

1 x Desktop Laser Engraver

1 x 50W Laser Tube

2 x Rotary Axes

5 x Wood Boards

5 x Paper Boards

5 x Acrylic Boards

1 x Power Cable

2 x USB Cables

1 x Ethernet Cable

1 x USB Flash Drive (with Software)

2 x Exhaust Pipes

1 x Duct Fan with Remote

3 x Hose Clamps

1 x Storage Box with Tools

1 x Instruction Manual
