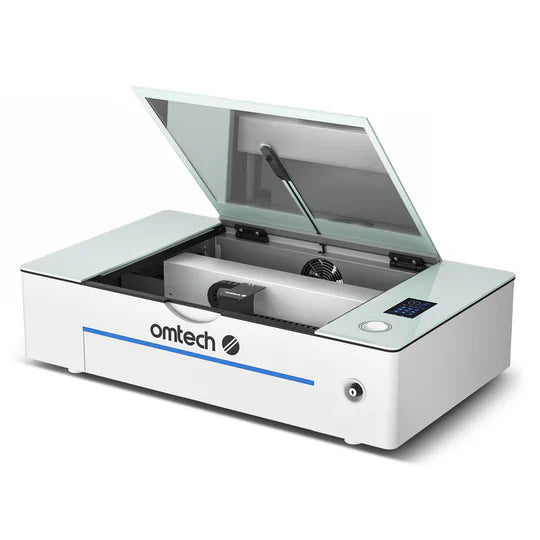

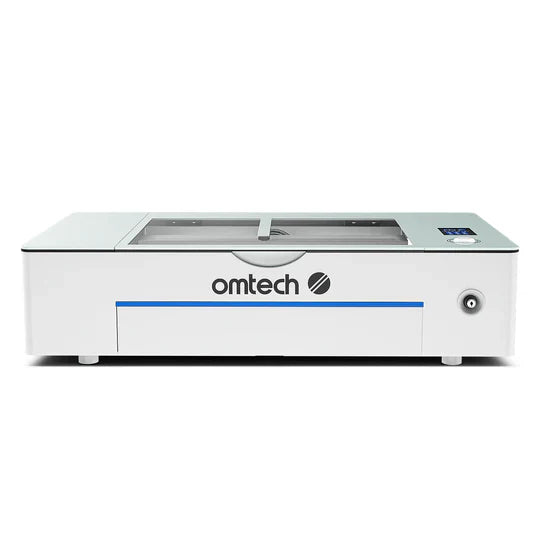

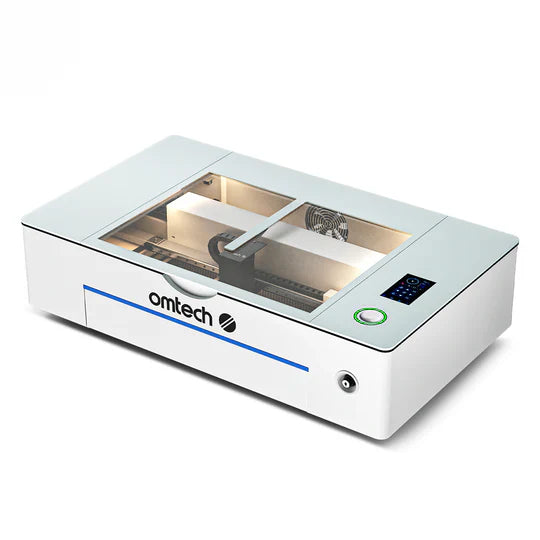

OMTech Polar+ 55W Desktop CO2 Laser Engraver and Cutter with Two Rotary Axes

Specifications:

Rated Power: 55W

Dimensions(L*W*H): 38.2 x22.3 x 9.2 in. (970x565x234 mm)

Honeycomb Workbed Dimensions: 22.5 x 13.2 x 0.9 in. (571x336x22 mm)

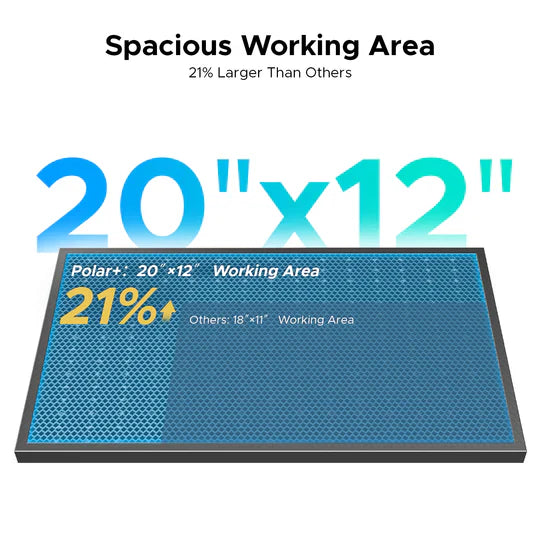

Standard Processing Area: 20.1 x 11.8 in. (510x300 mm)

Trayless Processing Area: 13.7 x 8.2 in. (350x21 mm)

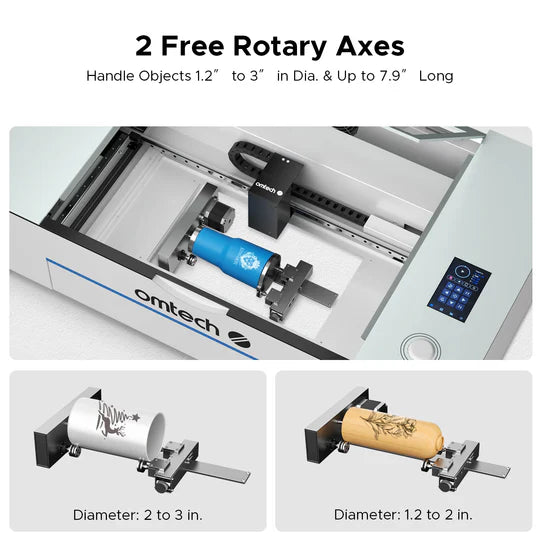

Rotary 1 Processing Area: 0-9.4 x 2.4-2.9 in. (0-240x60-75 mm)

Rotary 2 Processing Area: 0-9.4 x 1.2-2.3 in. (0-240x30-60 mm)

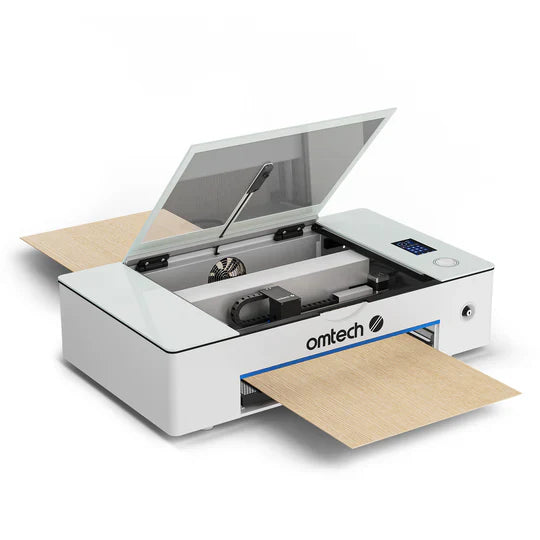

Front & Rear Pass-Through Area: 14.1 x 0.2 in. (360x5 mm)

Max. Material Thickness: 0.7 in. (17 mm), 2 in. (51 mm) (Without Bed)

Est. Laser Service Life: 11000 hr.

Max. Processing Speed: 19.6 ips (500 mm/s)

Max. Resolution: 1000 dpi

Mini. Letter Size: 0.04 x 0.04 in. (1x1 mm)

Water Chiller Capacity: 1.6 qt. (1.5 L)

Flow Rate: 142 gph (540 L/h)

Camera Resolution: 5MP

Field of View: 20.1 x 11.8 in. (510x300 mm)

Accuracy: ±0.02 mm

Air Assist Port Diameter: 0.4 in. (10 mm)

Air Flow: 13.8 cfm (392 L/min.)

Exhaust Fan Port Diameter: 5.9 in. (150 mm)

Air Flow: 282/353 cfm (480/600 m3/h)

Data Transmission: Wifi, USB Cable, Ethernet Cable

Provided Operating Software: RDWorks

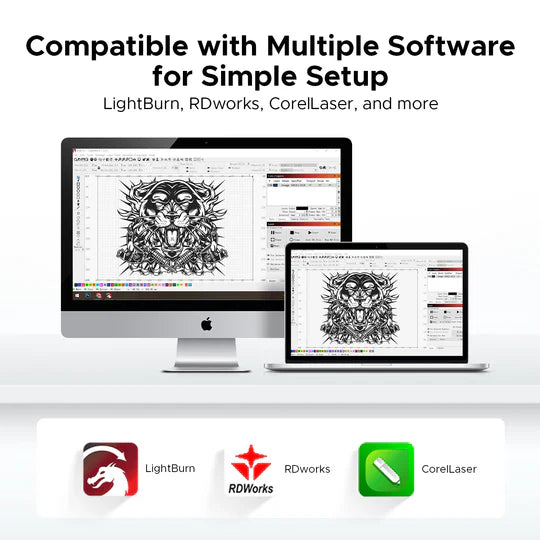

Compatible Operating Software: LightBurn, CorelDRAW, RDWorks

Certification: CE, FDA

Net Weight: 104 lb. (47 kg)

Warranty: 2 Years

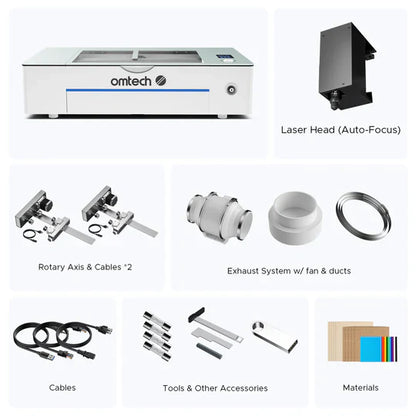

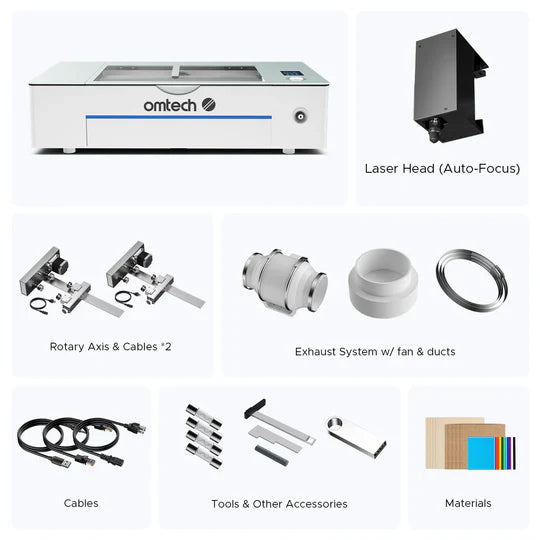

Package List:

55W Desktop Laser Engraver x 1

Rotary Axes x 2

Rotary Cables x 2

60W Duct Fan x 2

Fan Remote Control x 1

Adapter Ring x 1

Exhaust Pipes x 2

Hose Clamps x 3

Power Cord x 1

Ethernet Cable x 1

USB Cables x 2

Big Storage Box x 1

Small Storage Box x 1

Basswood Blanks x 5

Cardboard Blanks x 5

Acrylic Blanks x 5

Straps x 2

User Manual x1
